compose-nav-graph turns Jetpack Compose navigation into a reviewable visual artifact
skydoves' compose-nav-graph brings rendered screen previews, typed routes, and navigation drift checks into one Android Studio workflow so app flow stops living only in developers' heads.
A lot of mobile navigation architecture is technically explicit but still operationally fuzzy. Routes may be typed, transitions may be well-structured, and previews may exist, but the actual app flow often remains something the team reconstructs mentally from scattered files, route classes, and composable entry points. That is why compose-nav-graph stood out to me. It treats navigation not just as code, but as a visual artifact that teams can inspect, review, and export.
That framing matters. In most apps, navigation is one of the most important product surfaces because it encodes user flow, state transitions, and handoffs between screens. Yet it is usually under-instrumented as a collaboration layer. This repo tries to close that gap inside Android Studio itself.
What the project actually ships

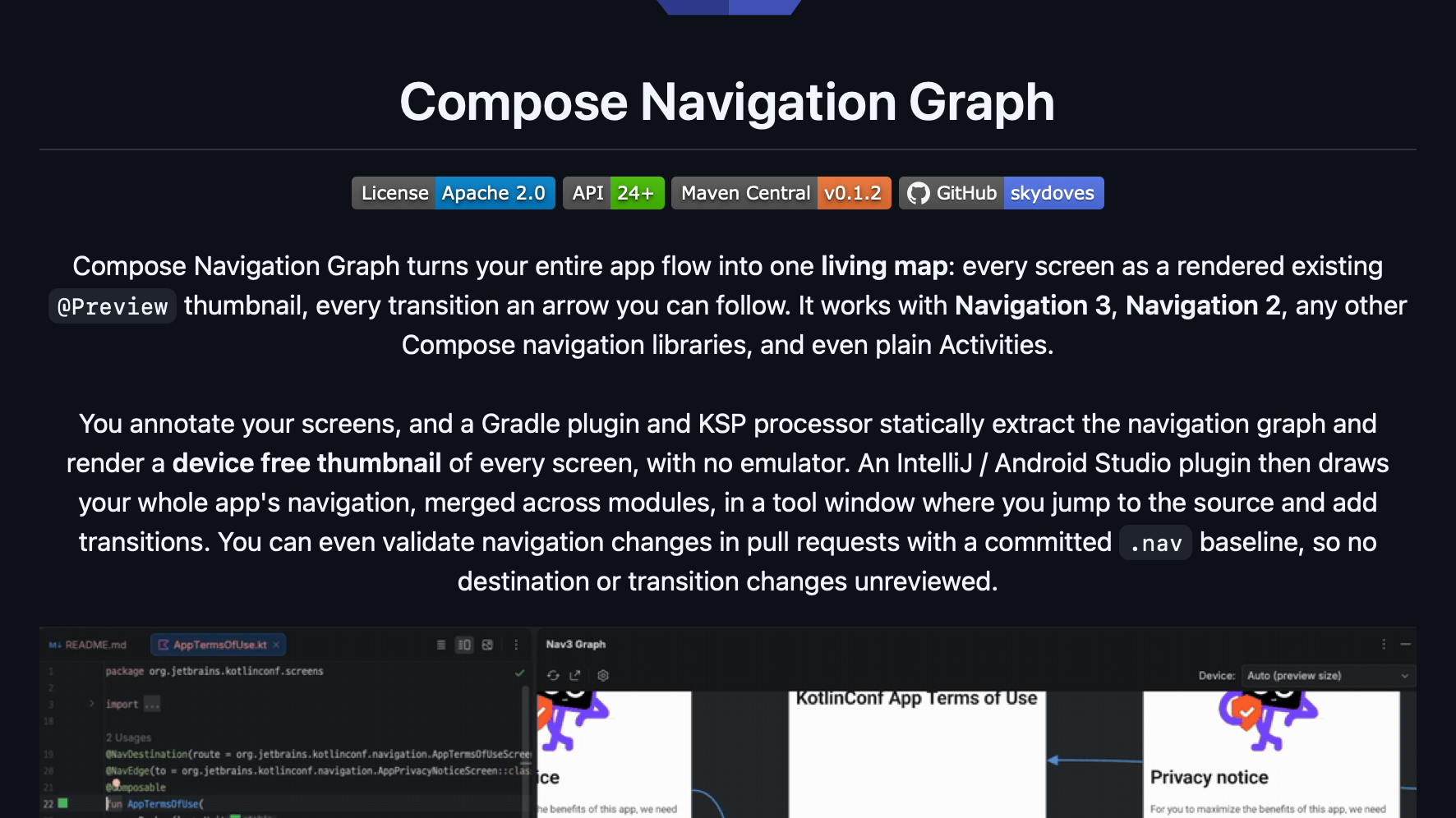

compose-nav-graph is not only an IDE plugin. It is a small toolkit made of annotations, a KSP processor, a Gradle plugin, and an IntelliJ or Android Studio plugin that work together. The result is a live graph of your app where each destination can show a rendered @Preview thumbnail, typed arguments, and explicit transitions between screens.
The setup is more practical than the headline suggests. The README says it works with Navigation 3, Navigation 2, other Compose navigation libraries, and even plain Activities referenced through annotations. That is important because tools like this usually become much less interesting once they require a deep architectural rewrite. Here, the pitch is closer to augmentation than migration.
The Gradle side is also product-shaped. The plugin can statically extract the graph, render device-free thumbnails through Layoutlib, merge graphs across modules, and generate export artifacts. The IDE side then turns that data into a tool window where builders can inspect the flow, jump to source, and even scaffold transitions or destinations from the canvas.
Why the reviewability angle is the strongest idea
The most interesting part is not the graph visualization by itself. It is the decision to treat navigation drift as something reviewable in the same way API changes or snapshot changes are reviewable.
The repo introduces a committed .nav baseline and matching tasks like navDump and navCheck. That means a route change, argument change, or transition change can show up as an explicit diff instead of disappearing inside unrelated code edits. For teams shipping complex Android products, that is a deceptively strong workflow decision.
Navigation changes are often user-experience changes. A new branch in the flow, a removed screen, or a modified argument path can affect onboarding, checkout, settings, or retention-critical journeys. When those changes stay invisible until QA or manual exploration, teams lose a lot of context. compose-nav-graph tries to surface that context earlier, directly in pull requests and CI.
Why this feels useful beyond plugin novelty
There are plenty of developer tools that demo well and disappear once the novelty wears off. This one feels more durable because it connects several real jobs that Android teams already have.
First, it helps developers understand large multi-module apps faster. Instead of reading route definitions across modules and reconstructing the flow in your head, you get one interactive map. Second, it helps design and product conversations because exported graphs and preview galleries can become communication artifacts, not just engineering metadata. Third, it helps code review because the navigation layer becomes diffable and harder to change accidentally.
That combination is what makes the repo feel product-minded. It is not just giving you a prettier graph. It is trying to make navigation more legible across implementation, review, and collaboration.
The preview pipeline is smarter than it sounds
Another detail I like is the use of existing @Preview infrastructure. Instead of inventing a parallel rendering system, the project links previews to routes and reuses them to populate the graph and gallery. That is a good design choice because it builds on habits Android teams already understand.
It also nudges teams toward better preview hygiene. If the navigation graph becomes more useful when previews are well-maintained, then improving preview coverage starts paying off outside the usual UI iteration loop. The repo turns that maintenance work into something with architectural value.
The same applies to export support. Being able to generate standalone HTML or PNG artifacts means the graph is not trapped inside one developer's IDE. It can travel into docs, PRs, team reviews, or async discussions. That portability makes the tool much more credible for real teams.
Where the boundaries are
There is still a clear tradeoff. This repo is best for teams that already care about structure, previews, and code review discipline. Small apps with very simple navigation may not need this level of instrumentation, and teams with weak preview coverage will not get the full benefit immediately.
There is also some annotation and setup cost, even if the repo works hard to minimize it. The value grows with app complexity. That means the biggest wins likely show up in apps where navigation has already become a coordination problem, not in toy projects.
But that tradeoff feels reasonable. The project is not pretending to be zero-effort magic. It is offering a stronger interface for understanding and reviewing app flow, and that is usually worth some setup if the product is large enough.
Why builders should care
For builders, compose-nav-graph is a useful reminder that good tooling is often about making invisible structure visible. Jetpack Compose already gives teams expressive UI code and typed navigation options, but those alone do not guarantee that the full user journey is easy to inspect or discuss.
This repo turns that journey into something you can see, diff, and share. That is why it feels more important than another plugin release. It treats navigation as a first-class product artifact, not just an implementation detail buried in source files. For Android teams shipping real apps, that is a meaningful upgrade in how app flow gets understood and reviewed.
